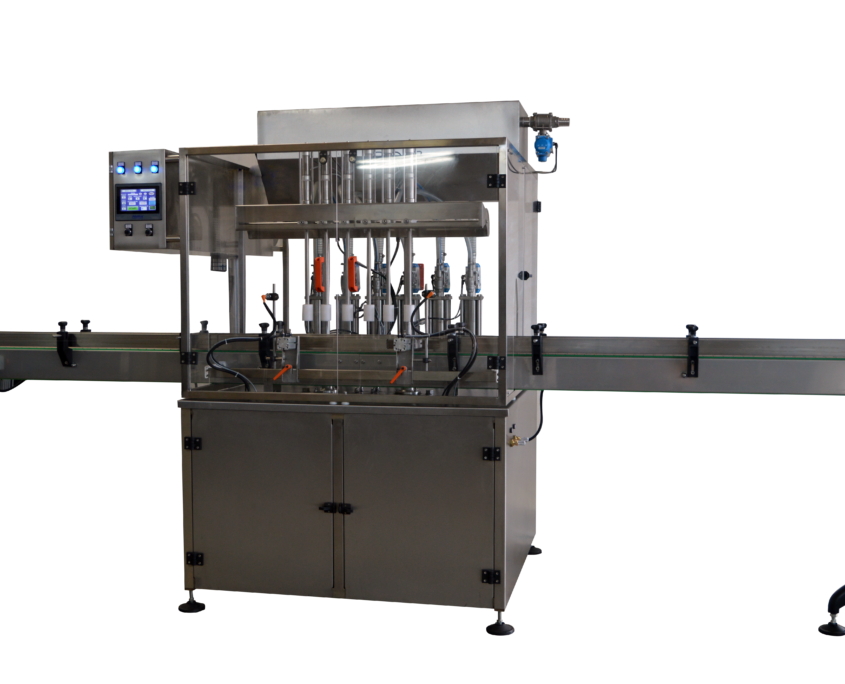

CODE: SAF-210
Food and Beverage: Ketchup, mayonnaise, honey, tahini, molasses, pomagranate molasses, edible oil, cooking oil, olive oil, boza, sauce, etc…
Chemicals and Cosmetics: Liquid detergent, liquid hand soap, dish washing liquid, hot detergent gel, fabric softener, shampoo, shower gel, etc…
Petroleum: Motor oil, engine oil, fuel additive, etc..
Technical Specifications
System: Linear , Two-lane (DUAL)
Working System: Volumetric
Construction: All visible parts AISI 304 Stainless
Conveyor: 82mm PVC conveyor belt, ~ 5.000
Conveyor Height: Standard 1000 mm (± 50mm)
Bottle: Glass, Plastic, PET, PE
Control System: LG brand PLC System
Nozzle: 8 parts (inside closing)
Cylinder: 8 parts (316 Stainless Steel)
Cylinder Volume: 100 cc -1000 cc -1000 cc – 2000 cc
Filling Adjustment: 100 cc-1000 cc / 1000 cc – 2000 cc
Weight Adjustment: Automatic adjustable on touch screen
Filling Tank: ~ 110 lt. (sensitive level controlled)
Filling Accuracy: ± 0.3%
Electrical Requirements: 380 V, 50 Hz, 3 phases
Energy Consumption: 2.5 kW
Air Requirements: 6-8 bar
Air Consumption: 300 lt./m
Dimensions (W * L * H): 1250x1300x2400 mm (conveyor ~ 5.000 mm)
touch screen LCD Operator Panel
P.S. : We are able to produce the electrical system according to your country’s required values
